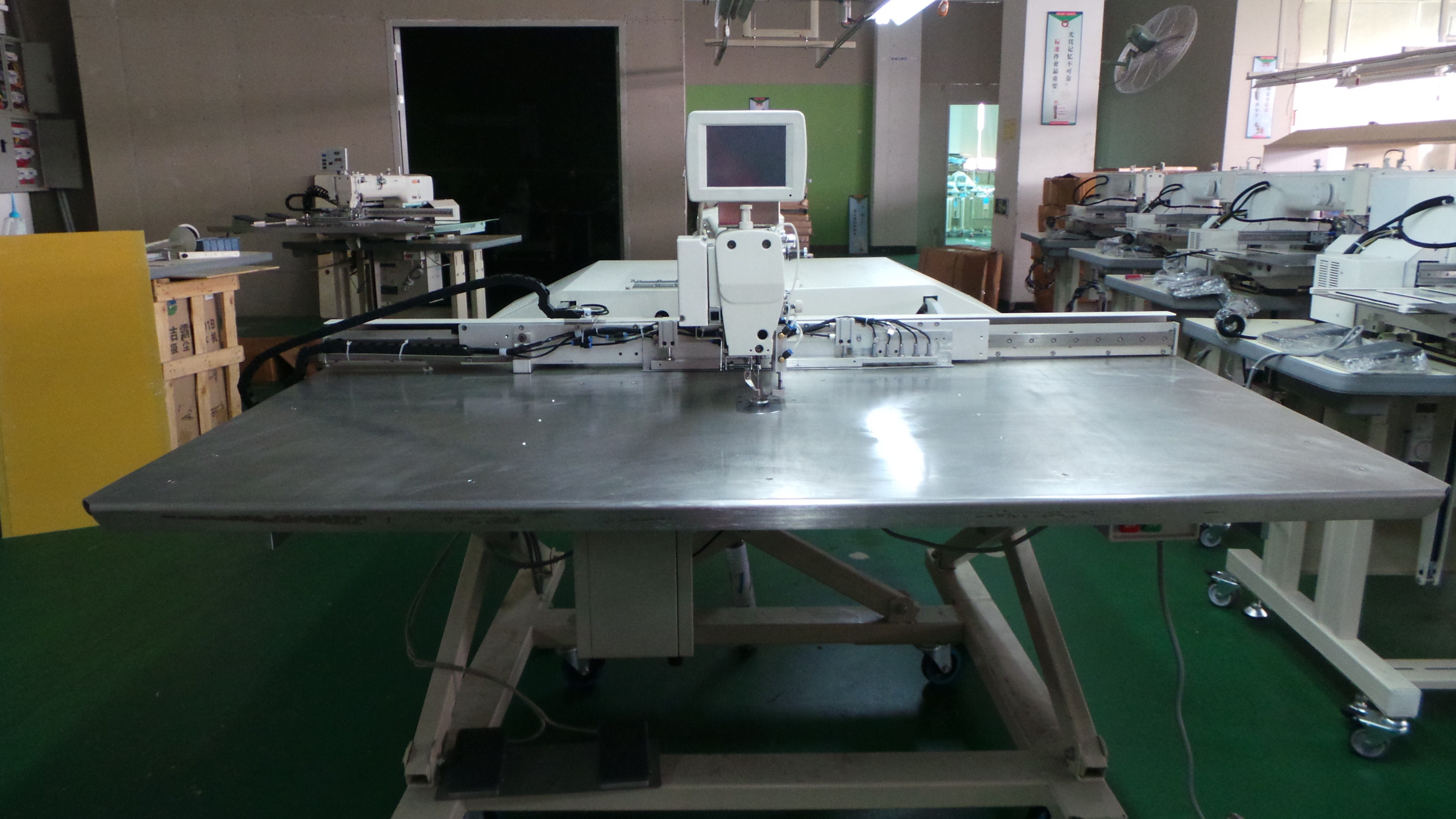

Shenzhen Chaocheng Sewing Technology Co.Ltd launched the new Pattern sewing machine with 1200*400mm sewing area.
| Model | CC-12040 | ||
| Sewing area | Max.120×40cm | ||
| Line | single needle sewing | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | all in one | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | digital tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 1000W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 590kg | ||
| Gross weight | 660kg | ||
| Packing | 267*140*158cm | ||
| CBM | 5.9m³ | ||
Contact us for more information via email: jasmine@chache-cn.com
